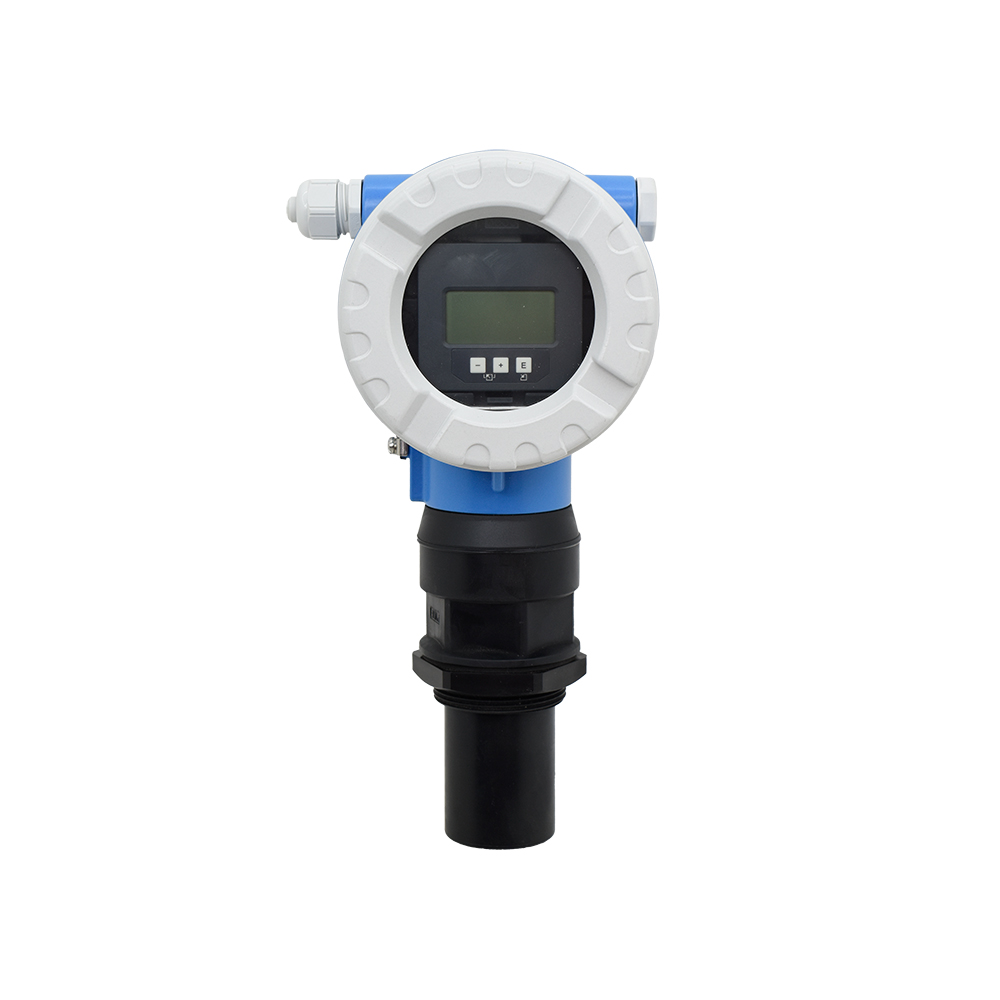

Endress+Hauser Ultrasonic Level Transmitter, Model FMU41

The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate. Two-wire or four wire instrument for continuous non-contact level and flow measurement.

Features

• Reliable non-contact measurement

• Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable

• Envelope curves on the on-site display for simple diagnosis

• Hermetically sealed and potted sensor

• Chemically resistant sensor out of PVDF

• Calibration without filling or discharging

• Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Specs at a glance

• Accuracy

  +/- 2 mm or +/- 0,2 % of set measuring range 1)

• Process temperature

  -40 °C … 80 °C
  (-40 °F … 176 °F)

• Process pressure / max. overpressure limit

  0.7 bar … 3 bar abs
  (10 psi … 44 psi)

• Max. measurement distance

  Liquids: 8 m (26 ft),
  Solids: 3.5 m (11 ft)

• Main wetted parts

  PVDF
