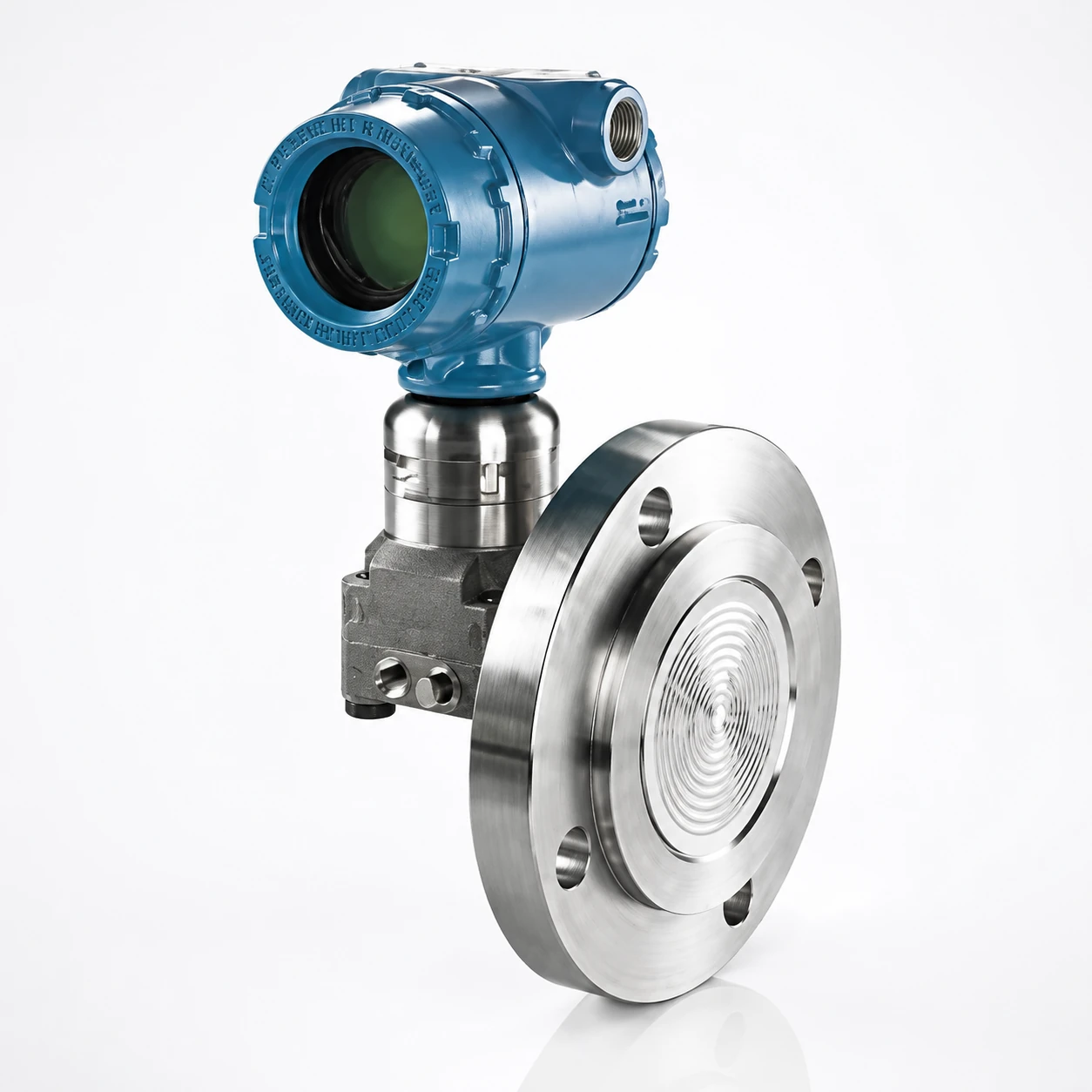

Rosemount liquid level transmitter Model 3051L
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
The Rosemount 3051L Level Transmitter is a fully integrated and highly reliable level‑measurement solution designed for accurate and stable performance in a wide range of industrial applications. Engineered with advanced differential pressure technology, it delivers precise level, interface, and density measurements while maintaining excellent long‑term stability and resistance to process variability. Its modular design allows flexible installation, reduced maintenance, and improved safety, making it a trusted choice for industries requiring dependable level monitoring such as oil and gas, chemical processing, and power generation
Features
- Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments
- Fully-assembled pressure, level and flow solutions arrive ready-to-install for improved reliability and performance
- Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
- The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
- Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse lines before they impact the quality of the process for increased safety and reduced downtime
- 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Specifications
| Accuracy | Up to ±0.075% of span |
| Warranty | Up to 5-yr limited Warranty |
| Rangedown | Up to 150:1 |
| Max. Operating Pressure | Up to 300 psi (20,68 bar) |
| Process Temperature Range | Based on fill fluid – Maximum 401°F (205°C), Minimum -157°F (-105°C) |
| Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
| Seal System Type | Direct Mount, Tuned-System |
| Transmitter Connection | Welded-Repairable |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, JIS |
| Process Wetted Material | 316L SST, Alloy C-276, Tantalum |
| Diagnostics | Basic Diagnostics, Power Advisory Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications |
