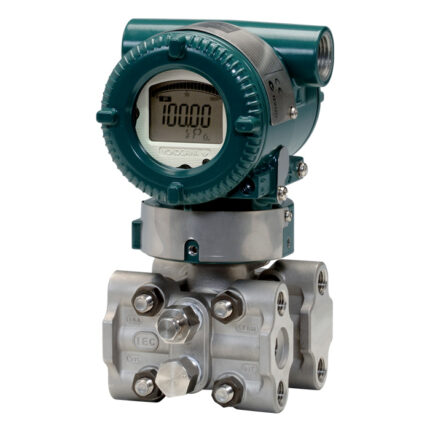

Yokogawa Differential Pressure Transmitter Model EJA110E
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa. The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
features
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2 / SIL3 Certified
- MWP 2,300 psi (MWP 3,600 psi option)
- Local Parameter Setting (LPS)
Applications
-
Flow Measurement: Used to measure the flow rate of liquids, gases, and steam by detecting the differential pressure across primary flow elements such as orifice plates, Venturi tubes, or flow nozzles.
-
Level Measurement: Applied in tanks, vessels, and separators to determine liquid level by measuring the hydrostatic pressure difference created by the liquid column.
-
Density Measurement: Utilized for calculating the density of liquids based on the differential pressure between two points at different elevations within a vessel.
-
Pressure Measurement: Suitable for accurate measurement of process pressure in pipelines, reactors, and industrial systems handling liquids, gases, or steam.
Specification
|
Output Signal
|
4 – 20 mA HART/BRAIN (output signal code D&J), two – wire system with digital communication. The signal can be set to linear or square – root. The BRAIN or HART FSK protocol is superimposed on the 4 – 20 mA signal, and the output range is 3.6 mA – 21.6 mA. There is also a 1 – 5 V HART (output signal code Q) option, which is a three – wire or four – wire low – power type that can be set to linear or square – root.
|
|
Response Time
|
Primary variable (differential pressure): 90 ms; Secondary variable (static pressure): 360 ms
|
|
Accuracy
|
Primary variable: ±0.055% of span; Secondary variable: ±0.5% of span
|
|
Stability
|
±0.1% of URL per 10 years
|
|
Over – pressure Effect
|
±0.03% of URL for the primary variable
|
|
Rangeability
|
100:1 for the primary variable
|
|
Measurement Span
|
F range: 0.5 – 5 kPa (2 – 20 inH2O), – 5 – 5 kPa (- 20 – 20 inH2O);
L range: 0.5 – 10 kPa (2 – 40 inH2O), – 10 – 10 kPa (- 40 – 40 inH2O); M range: 1 – 100 kPa (4 – 400 inH2O), – 100 – 100 kPa (- 400 – 400 inH2O); H range: 5 – 500 kPa (20 – 2000 inH2O), – 500 – 500 kPa (- 2000 – 2000 inH2O); V range: 0.14 – 14 MPa (20 – 2000 psi), – 0.5 – 14 MPa (- 71 – 2000 psi) |
|
Wetted Parts Material
|
Cover flange and process connector: ASTM CF – 8M; Bolts and nuts material: 316L SST
|
|
Process Connections
|
Without process connector (1/4 NPT female on the cover flanges)
|
|
Installation
|
Horizontal piping and left side high pressure
|
|
Amplifier Housing
|
Cast aluminum alloy
|
|
Electrical Connection
|
M20 female, two electrical connections and a blind plug
|
|
Integral Indicator
|
Digital indicator
|
|
Mounting Bracket
|
304 SST 2 – inch pipe mounting, flat type (for horizontal piping)
|
|
Safety Certification
|
Exida and TÜV SIL 2/SIL 3 certified
|
|
Maximum Working Pressure
|
2,300 psi (3,600 psi option)
|
