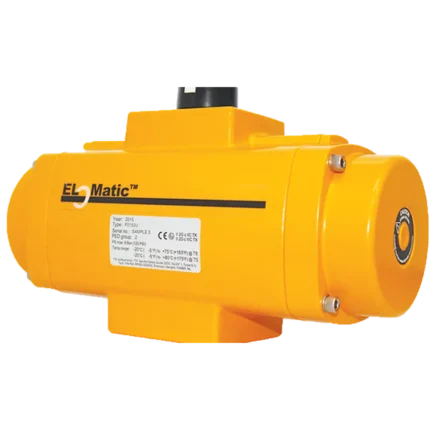

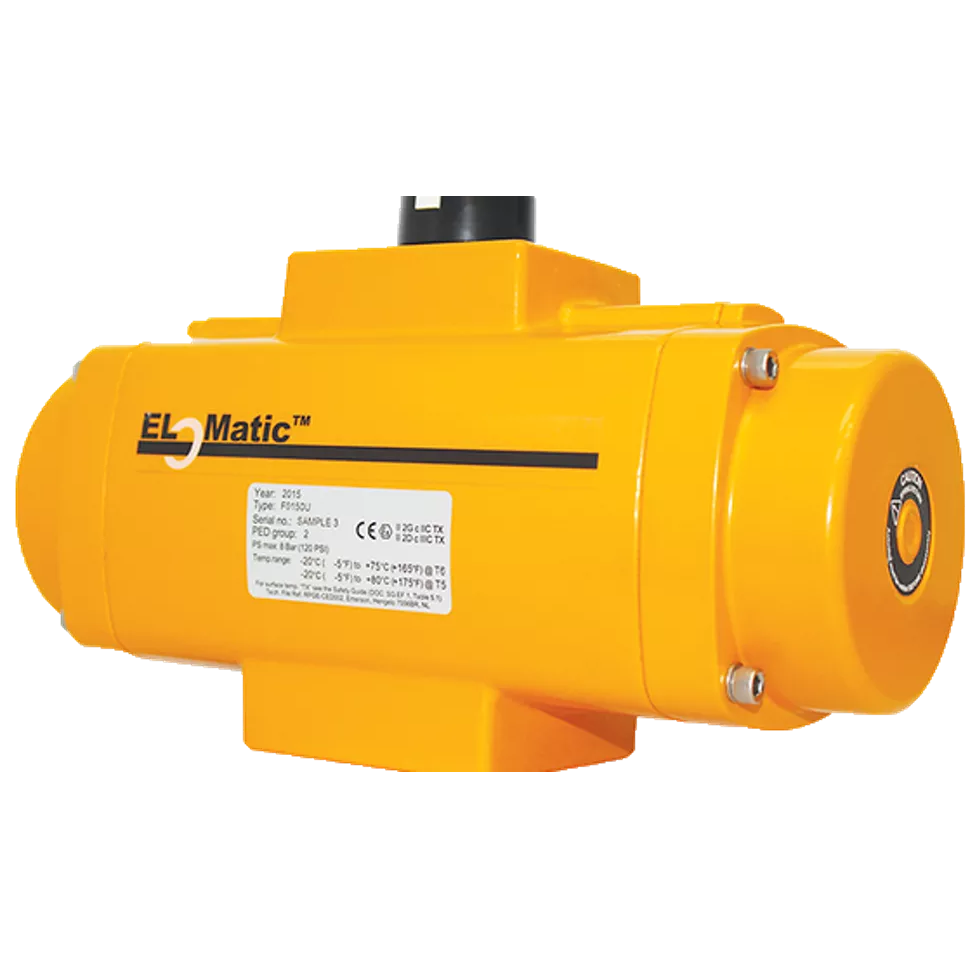

EL-O-Matic F-Series Rack and Pinion Pneumatic Valve Actuator
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Availability
In Stock
Ships From: China Warehouse
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator’s “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.
Features
- With single and double acting Actuators in 13 sizes, ranging from 12 Nm to 4100 Nm (106 to 36,474 lbf.in).
- Fit and Forget robust, corrosion resistance design.
- Easy to install actuator which functions faithfully giving many years of dependable performance.
- The hard anodized high grade aluminum (7075 T6) pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.
- Modular construction allows easy spring or action changes.
- Dual valve flange drilling patterns and interchangeable drive inserts allows for direct mounting capability and reduces the need for valve mounting kits.
- Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories.
- Dual Stroke Adjustment allows easy setting of the valve stroke which prevents premature valve failures.
- Construction with standard components for delivery in a variety of frequently used configurations.
Specifications
| Power Source | Pneumatic |
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Certifications | ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67 |
| Control Type | On/Off, Positioning, Modulating, ESD |
| Valve Type | Ball, butterfly, plug and any other quarter turn application |
| Operating Temperature |
Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options |
| Torque | 13 sizes: 12 Nm to 4100 Nm (106 lbf.in to 36,474 lbf.in) |
| Operating Pressure | up to 8.3 bar / 120 psi |
