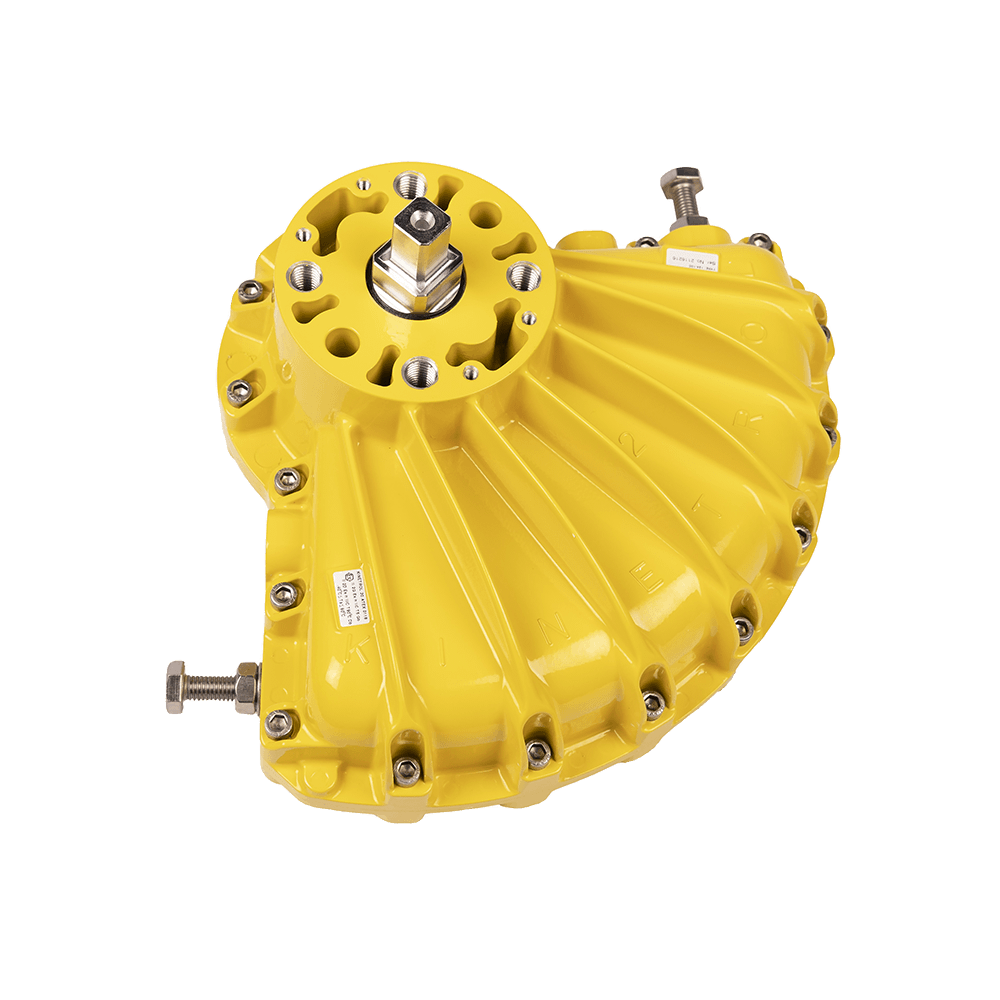

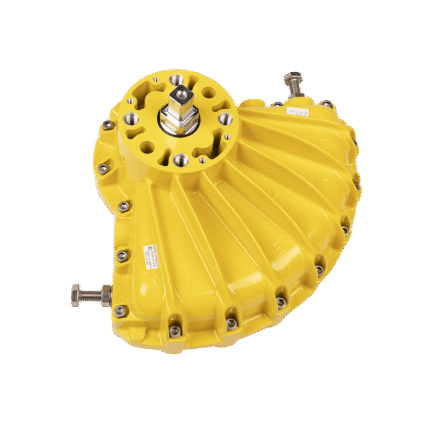

Kinetrol double acting vane-type rotary actuator Model 12
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Availability
In Stock
Ships From: China Warehouse
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
Kinetrol’s double acting vane-type rotary actuator Model 12 is robust and durable with its epoxy thermoset powder coated aluminium alloy casing. The Model 12’s special design, with its one piece integral zinc plated SG iron vane and shaft, makes it highly reliable and efficient.
Specifications
| Output Torque: | 575 Nm at 7 bar / 5000 lbf.ins at 100 psi |
| Displaced volume: | 1410 cm³ / 86 in³ |
| ATEX: | Up to Category 2 |
| Guarantee: | Up to 1 million cycles (2 million operations) |
| VDI/VDE: | 3845 Namur accessory mounting option |
Options
- Fail safe spring return units – clockwise or counter clockwise
- Female drive and mounting details to DIN 3337 and ISO 5211
- Limit switch boxes for open/closed indication – various switches including hazardous area Spring to centre
- Integral solenoid valve
- Geared manual override
- AP pneumatic positioner – full range of options
- G3 Damper Drive
- EL electropneumatic positioner – full range of options
- Accessory mount plate for positioners, switch boxes and clear cone monitor. See TD149.
- P3 on/off positioner – full range of options including hazardous area
- High temperature / Low temperature options
- Clear Cone monitor
- VDI/VDE 3845 Namur accessory mounting option available – contact Kinetrol
- 180° and 120° model
- Available in Blueline paint finish
