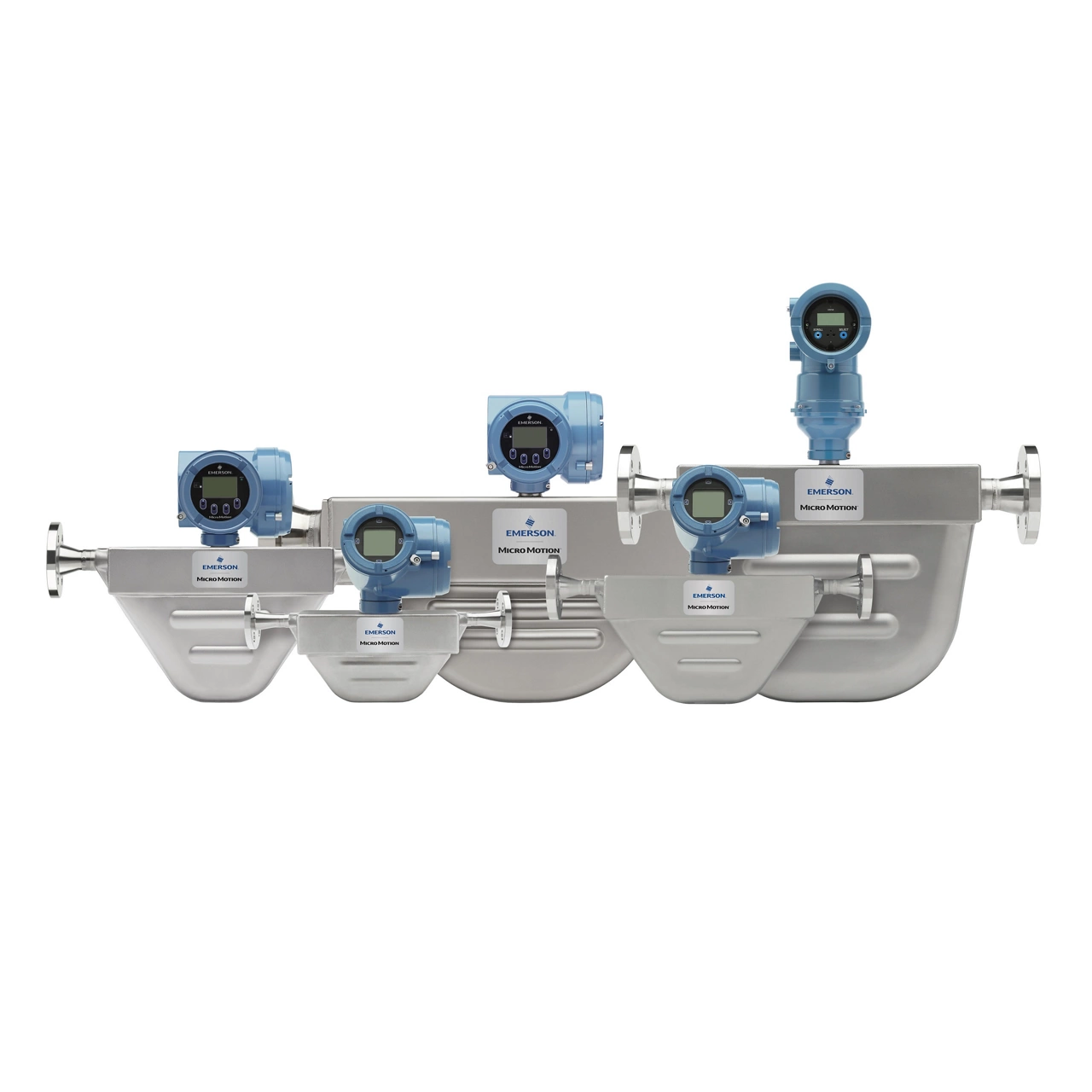

Micro Motion™ F-Series Coriolis Flow and Density Meters
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
Micro Motion™ F‑Series Compact, Drainable Coriolis Flow and Density Meters are designed to deliver exceptional accuracy and dependable performance in critical process control applications. Their compact and drainable design makes them an ideal solution for installations where space is limited or where complete drainage is required.
Engineered for reliability and durability, F‑Series flow meters provide highly stable and precise flow and density measurements. They are widely used in demanding industrial environments where accurate process monitoring is essential. By integrating these intelligent meters into your system, you can optimize operational efficiency, enhance process control, and effectively address complex productivity challenges.
Features
- Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design
- Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
- Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and data logging
- Broad range of meter approvals and certifications, including, but not limited to; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
- Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil
- Marine approvals including ABS, BV, CCS, DNV, LR, KR, NKK, RINA
- Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
- Well suited for use in marine fuel consumption installations
Specifications
Liquid Accuracy / Repeatability: Up to ±0.1% of rate (0.05% of rate)
Gas Accuracy / Repeatability: Up to ±0.35% of rate (0.25% of rate)
Density Accuracy / Repeatability: Up to ±0.0005 g/cm3 (0.0002 g/cm3)
Line Size: 1/4″ (DN6) – 4″ (DN100)
Pressure Range: Up to 6250 psig (430 barg)
Temperature Range: -148 °F to 662 °F (-100 °C to 350 °C)
Electronics (soft): Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
Turndown: 20:01
Certifications: Marine certified
