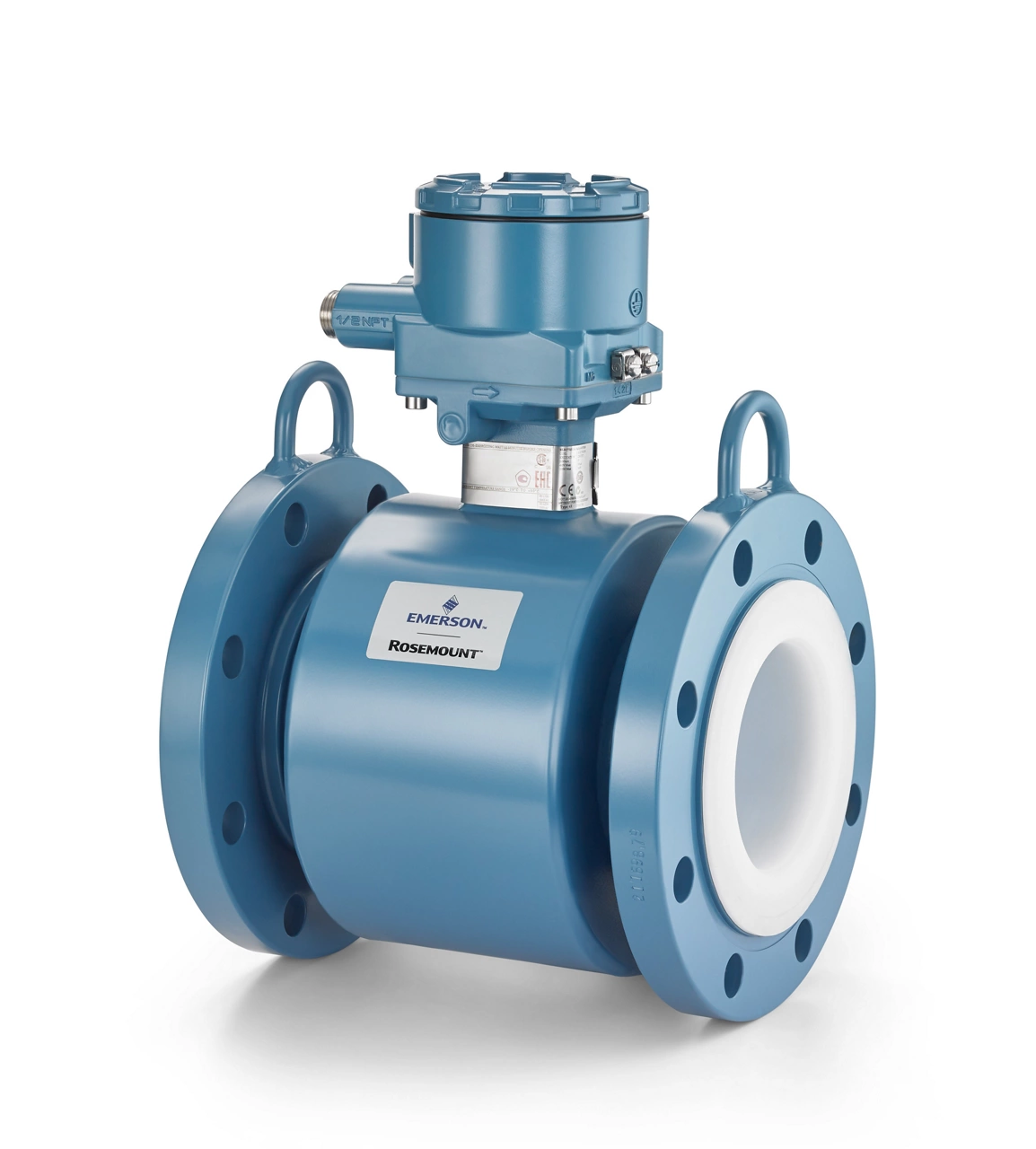

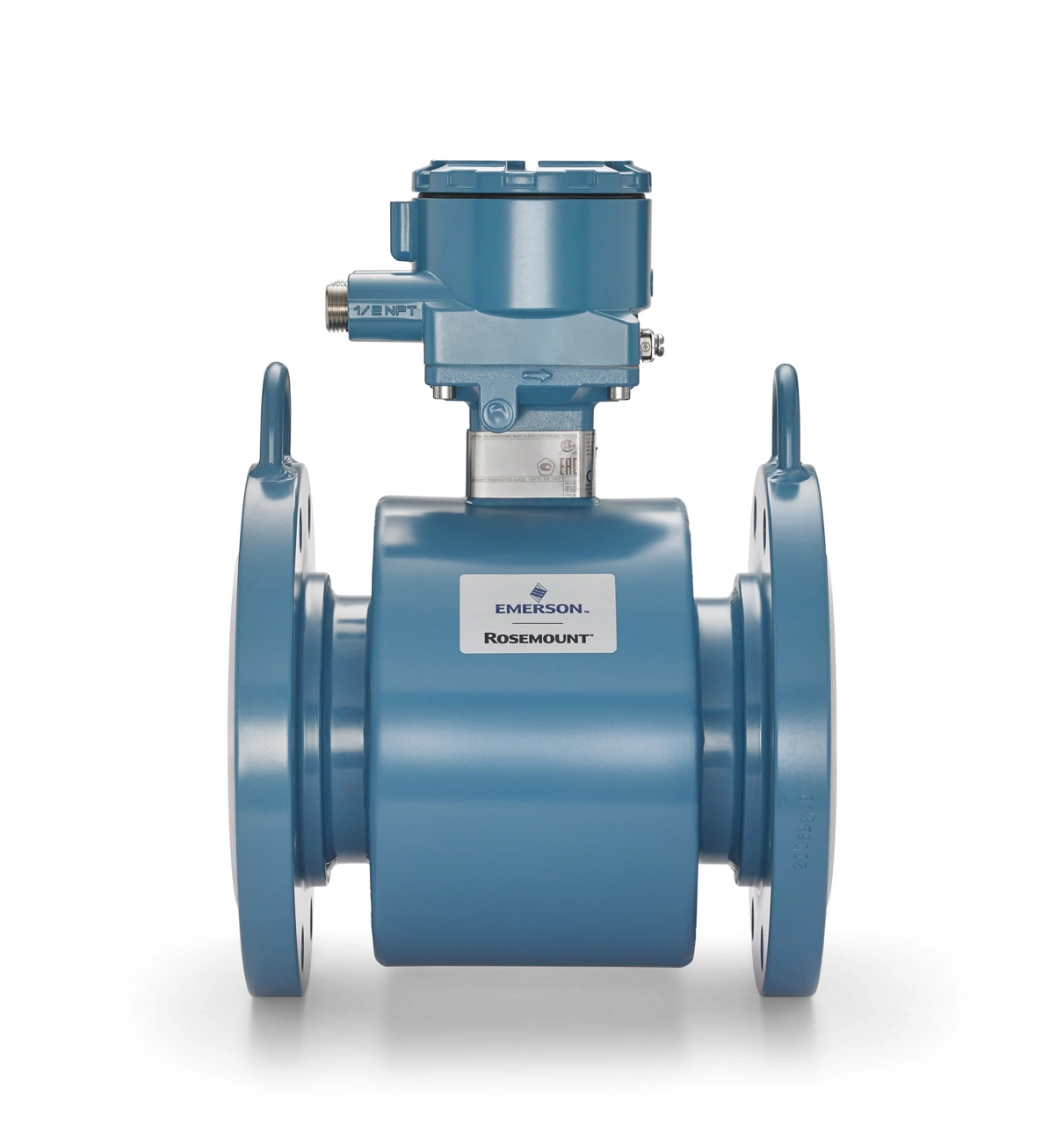

Rosemount™ 8705 Flanged Magnetic Flow Meter Sensors
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Availability
In Stock
Ships From: China Warehouse
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.
Key Features
- For maximum protection, a fully welded sensor housing provides a hermetic seal
- Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
- Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
- Ensure reliability in the harshest environments with an all-welded sensor housing
- Guard against installation damage and leading-edge wear with an optional lining protector
- Minimize maintenance and repair with an obstructionless design featuring no moving parts
Specifications
- Accuracy: Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
- Line Sizes: ½-36 inch (15-900 mm)
- Liner Materials: PEX, PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options
- Electrode Materials: 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
- Flange Ratings: ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)
- Submergence Protection: IP68 (Recommended with sealed cable glands)
