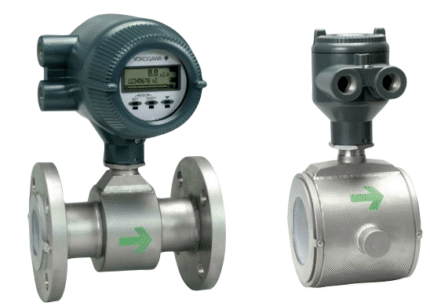

ADMAG AXF Series Magnetic Flow Meter
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details
The ADMAG AXF series magnetic flow meters are advanced instruments designed for exceptional reliability and performance in demanding process applications. The ADMAG AXF utilizes Yokogawa’s proven Dual Frequency Excitation method to ensure stable and accurate measurement. In addition, the newly introduced Enhanced Dual Frequency Excitation technology enables the AXF to handle even more severe and challenging process conditions.
The AXF is equipped with several user-friendly features, including an electrode adhesion level diagnostic function, infrared switches that allow parameter settings without opening the case cover, and the ability to change the direction of the electrical connection directly in the field. These functions make installation, operation, and maintenance significantly easier.
Based on FOUNDATION™ Fieldbus specifications, AXF Fieldbus models provide greater flexibility in instrumentation through enhanced communication capabilities. They support cost reduction by enabling multidrop wiring with fewer cables.
Features
1. User‑Focused Functionality
Designed with operator convenience in mind, the AXF flow meter includes several intelligent features that simplify installation and operation. These include a fluid adhesion level diagnostic function, flexible electrical connection direction for easier wiring in the field, and clear, versatile display indications for improved readability. In addition, the “Easy Setup” parameter configuration allows quick and straightforward commissioning.
2. Expanded Product Range
The AXF series offers a broader product lineup to meet diverse application needs. Enhancements include improved measurement accuracy, availability of extra‑small flange type models for compact installations, and multiple sanitary connection options suitable for hygienic industries such as food and pharmaceuticals.
3. Enhanced Performance and Specifications
Advanced technologies improve the performance of the AXF series, including the Enhanced Dual Frequency Excitation method for stable measurement under challenging conditions. The meter also provides improved minimum conductivity capability, high‑speed pulse output, and versatile input/output functions for integral flowmeter configurations, enabling flexible integration into modern control systems.
Specification
|
AXF
Remote Flowtube |
AXF
Integral Flow meter |
AXFA14
Converter |
AXFA11
Converter |
|
|
Size
|
2.5 to 400 mm
(0.1 to 16 inch) [depends on specifications] |
2.5 to 400 mm
(0.1 to 16 inch) [depends on specifications] |
Combined with Remote type flowtube
2.5 to 400mm (0.1 to 16 inch) |
Combined with Remote type flowtube (Note)
2.5 to 1800 mm (0.1 to 16 inch) |
|
Type of Use
|
General-purpose use,
Ex-proof type, Sanitary type, Submersible type |
General-purpose use,
Ex-proof type, Sanitary type |
General-purpose use,
Ex-proof type |
General-purpose use
|
|
Fluid Temp.
|
-40 to 160 deg.C
(-40 to 320 deg.F) [depends on specifications] |
-40 to 130 deg.C
(-40 to 266 deg.F) [depends on specifications] |
–
|
–
|
|
Ambient Temp.
|
-40 to 60 deg.C (-40 to 140 deg.F) [depends on model type]
|
|||
|
Accuracy
|
0.35% of rate (Optional ; 0.2% of rate)
|
|||
|
Fluid Conductivity
|
1 micro-S/cm or larger (depends on nominal pipe size and fluid condition)
|
|||
|
Lining
|
Fluorocarbon PFA/Ceramics/Polyurethance Rubber/
Natural Soft Rubber [depends on model type] |
–
|
–
|
|
|
Process Connection
|
Wafer, Flange, Sanitary connections
(Clamp[Tri-clamp, DIN, ISO], Union thread[DIN, ISO SMS], Butt-weld), etc. |
–
|
–
|
|
|
Maximum Cable Length
|
–
|
–
|
100m (330 ft)
|
200m (660 ft)
|
|
Indicator
|
–
|
Multi line backlit LCD (Full dot-matrix)
|
||
|
Diagnosis
|
Adhesion diagnosis, Empty pipe, Coil open, etc.
|
|||
|
Alarm message
|
Alarm message with corrective measures is indicated (English, German, French, Italian, Spanish, Japanese)
|
|||
|
Excitation method
|
Dual Frequency Excitation: AXF sizes 2.5 to 400 mm,
Enhanced Dual Frequency Excitation (optional): AXF sizes 25 to 200 mm Pulsed DC Excitation: AXW sizes 500 to 1800 mm (Note) |
|||
|
Ex-proof type
|
ATEX, FM, CSA, IECEx, TIIS
|
–
|
||
|
Options
|
Replaceable electrode, Rotatable terminal box(converter), Mirror finished lining surface(for PFA/Ceramics), Special gaskets, etc.
|
|||
