Micro Motion™ ELITE Coriolis Flow and Density Meter
- OEM Original
- Factory Tested
- Serial verified
- Warranty Available
Availability
In Stock
Ships From: China Warehouse
Delivery Time
5 to 10 Days (Express)
Shipping Option
DHL / FedEx / Air / Sea
Payment Methods
Secure Payment / TT / LC
Support
24/7 Technical Support
Product Details

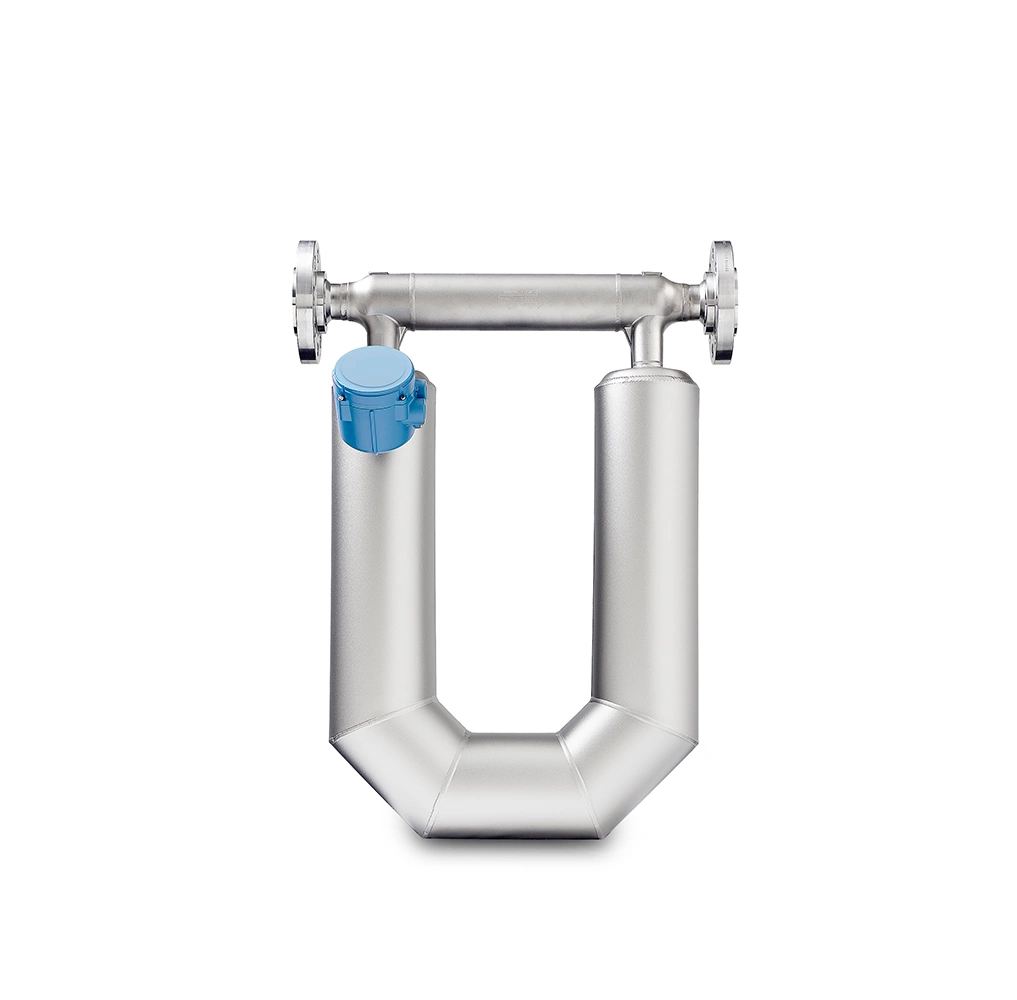

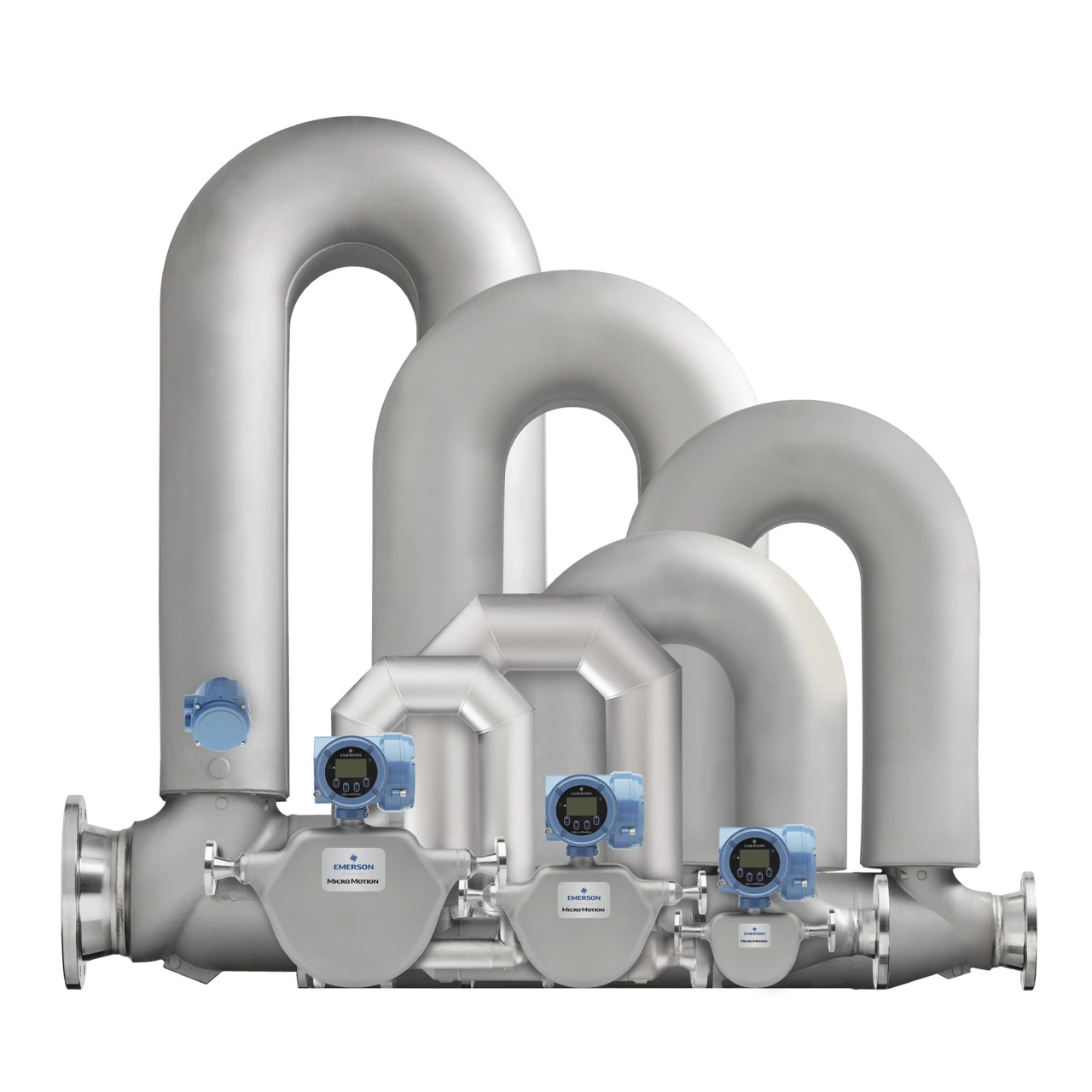

Micro Motion™ ELITE™ Coriolis flow meters are the top choice for demanding applications like custody transfer and two-phase flow. With unparalleled design versatility, ELITE meters excel in mass flow, density, and volume measurements across diverse line sizes and materials. Whether handling liquids, gases, or slurries, ELITE meters offer the highest accuracy and repeatability, ensuring reliable performance in any environment.
Features
- Get unparalleled measurement sensitivity and stability from this uniquely designed meter
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
- Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications
- Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects
- Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure
- Implement the widest process-measurement range: -454°F (-270°c) to 800°F (426°C) and up to 6,000 psig.
- Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
- Choose from models available in 316L Stainless Steel, C-22 nickel alloy and super-duplex materials
Specifications
- Liquid Accuracy / Repeatability: ±0.1% – 0.05% / 0.05% – 0.025%
- Gas Accuracy / Repeatability: ±0.25% / 0.20%
- Density Accuracy / Repeatability: ±0.0005 – 0.0002 g/cc / 0.00025 – 0.0001 g/cc
- Line Size: 1/12 inch (DN1) – 14 inch (DN350)
- Pressure Range:Rated up to 6,000 psig (414 barg) for select models
- Temperature Range:-454° F (-270° C) to 800° F (426° C)
- Electronics: Expansive I/O options including mA, frequency, discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
- Turndown: Up to 59:1 turndown from nominal
